EUROSYSTEMS

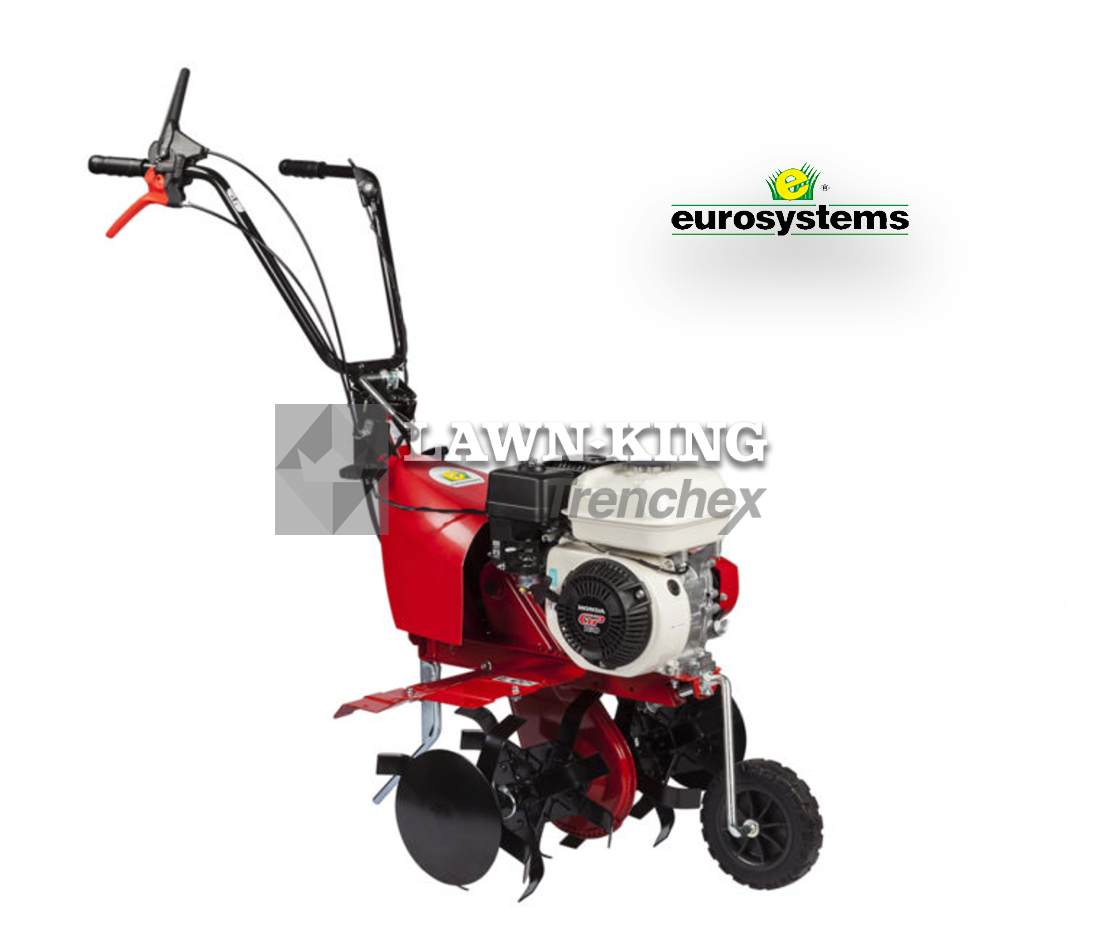

EURO 5 EVO

REAR-TINE ROTAVATOR

This single-speed rotavator (1 forward; 1 reverse) is suitable for preparing land to sow by breaking and crushing compact soil
  • Briggs & Stratton CR 950 208cc Engine
  • 75-50cm Working Width
  • 32cm Working Depth
  • 24 Riveted Steel Blades
RRP: £669.00 inc VAT

DETAILS

Favoured by users for its adjustable working width (50-75cm), the Eurosystems Euro 5 Evo rotavator will impress with its efficiency in breaking through the surface crust and crushing the soil below, thus increasing soil ventilation and landscaping potential.

The CR950 engine features a gross Torque* of 12,88 Nm and 208cc displacement. Briggs & Stratton’s OHV technology offers optimised performance, longer engine life and improved fuel economy.

Although equipped with a simple transmission output (1 forward; 1 reverse), the Euro 5 Evo maintains versatility and robustness thanks to the accurate internal quality controls.

Twenty-four steel blades spread across six spokes offer a working depth of 32cm and include ‘tree saver discs’ located at each end of the system; these protect the machine’s integrity and areas you wish to be left undisturbed.

FEATURES

image of the pedal operated hydrostatic transmission

Powerful Working System

Twenty-four steel blades offer unwavering performance in breaking up and crushing hard and medium-compact soils

Image of the ergonomic castelgarden set

User Centric Design

The height-adjustable handlebars on the Euro 5 Evo ensure comfort for the user even over long working sessions

Image of the textile grass collector

Protective Discs

The ‘tree saver discs’ on the adjustable Euro 5 Evo guard against unwanted rotavating on areas around trees and preexisting seedbeds

TECHNICAL SPECS

TRANSMISSION
Transmission Method: Chain In Oil Bath & Belts

Transmission Type: Geared

Number of Gears: 1 Forward Speed + 1 Reverse

POWER
Engine Brand: Briggs & Stratton

Engine Model: 950 CR

Displacement: 208cc

Fuel Type: Petrol

WORKING SYSTEM
Working Width: 75-50cm

Working Depth: 32cm

Tilling System: 24 Riveted Steel Blades

DRIVE SYSTEM

Drive: Self-Propelled

SUPPORT

OPERATING INSTRUCTIONS
